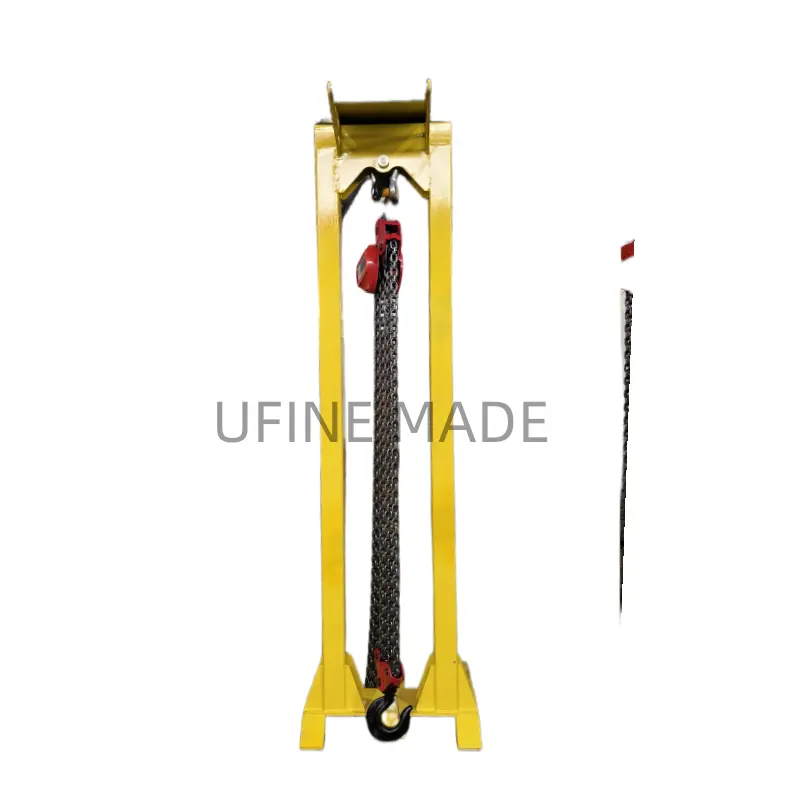

Manual Mechanical Jacks for Shipping Container

Application Manual Mechanical Jacks for Shipping Container

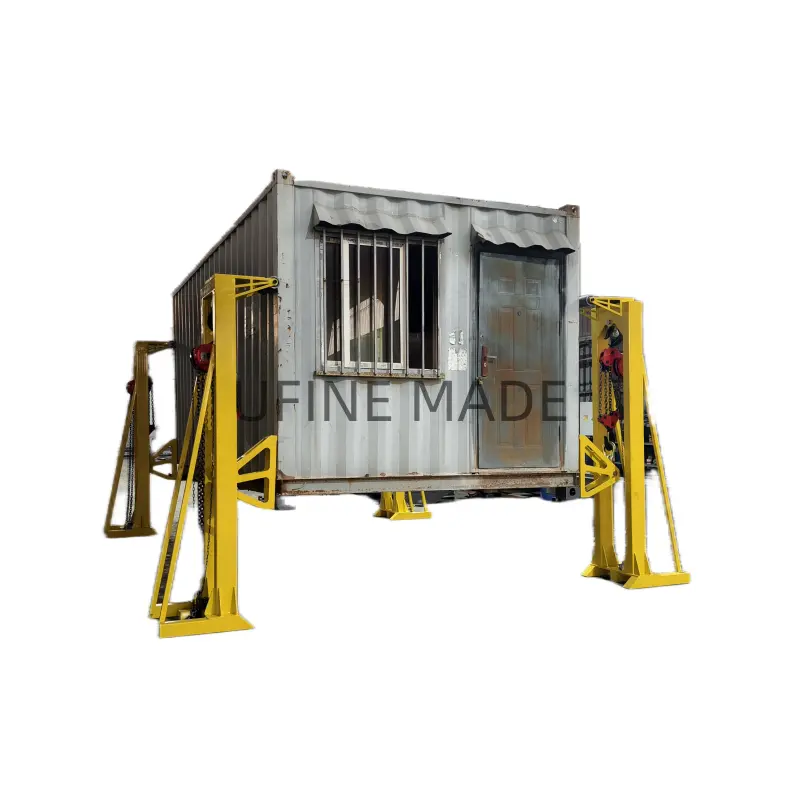

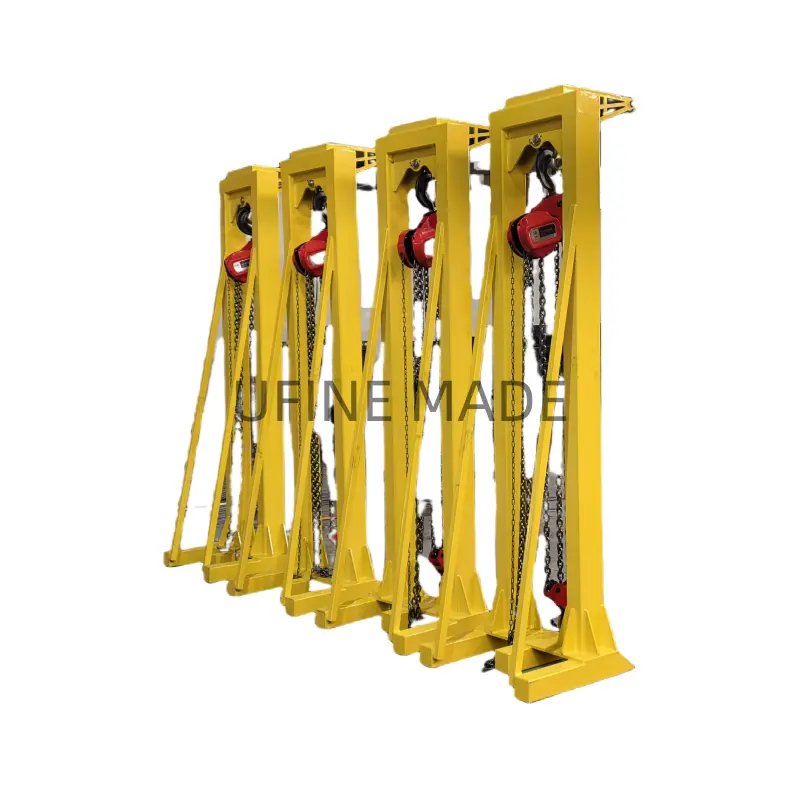

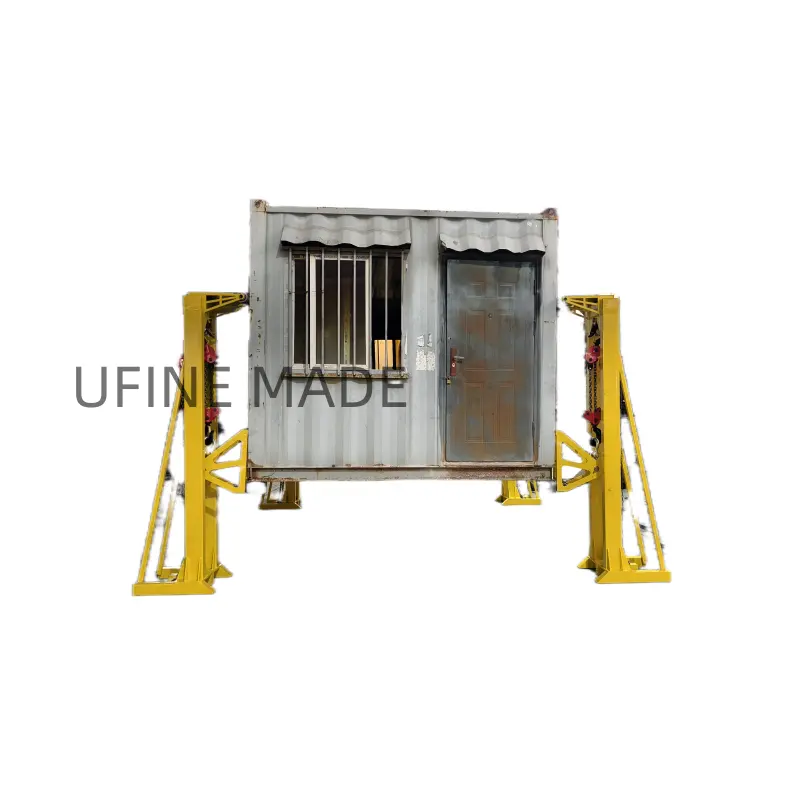

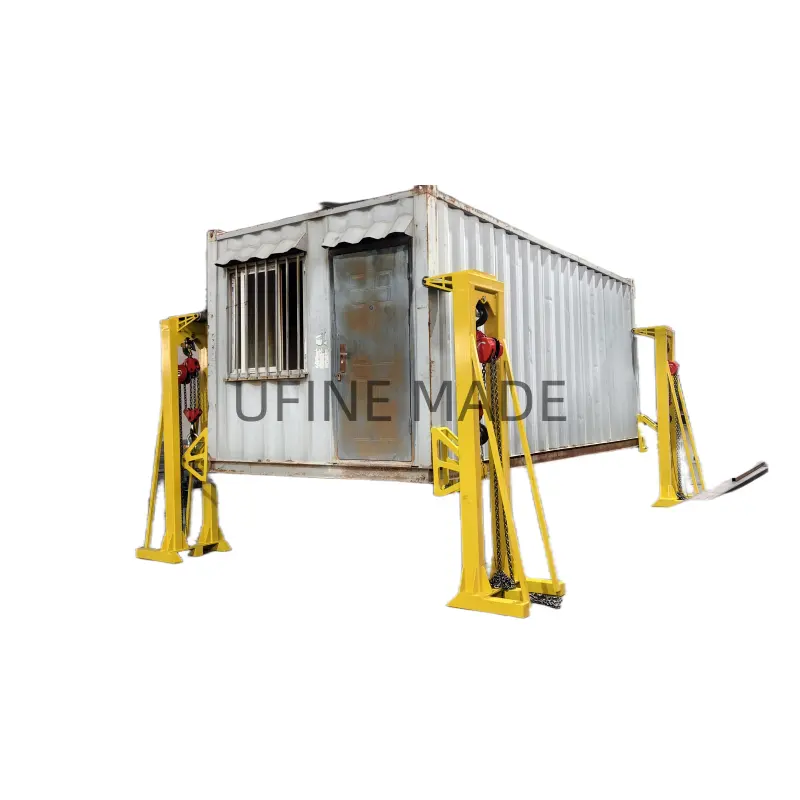

Manual Container Lifting Jacks are suitable for lifting containers on and off trucks without the need of a crane. Perfect for confined spaces or where cranes are unable to access. Manual lifting Jacks are modular in design so that low-cost solutions available for  specific requirements. A Manual lifting system consists of four lifting jacks. For lowering a container from a truck, the jacks are mounted and locked into the ISO-corners. Then the jacks are lowered to the ground and the container is lifted so that the truck can drive out. After that, the container can be lowered either to its working position or to the ground.Depending on the application of the lifting support, the following technical parameters can be achieved.

Specification:

Capacity: 3 ToN  5Ton  10Ton  15Ton  20Ton  30Ton  32Ton   36Ton   40Ton  50Ton 60Ton

Lifting Height: 1.7 Meter

Weight：100-600kg each Jack

Size: 0.3*0.5*2.2M

Stock: 10 Set
