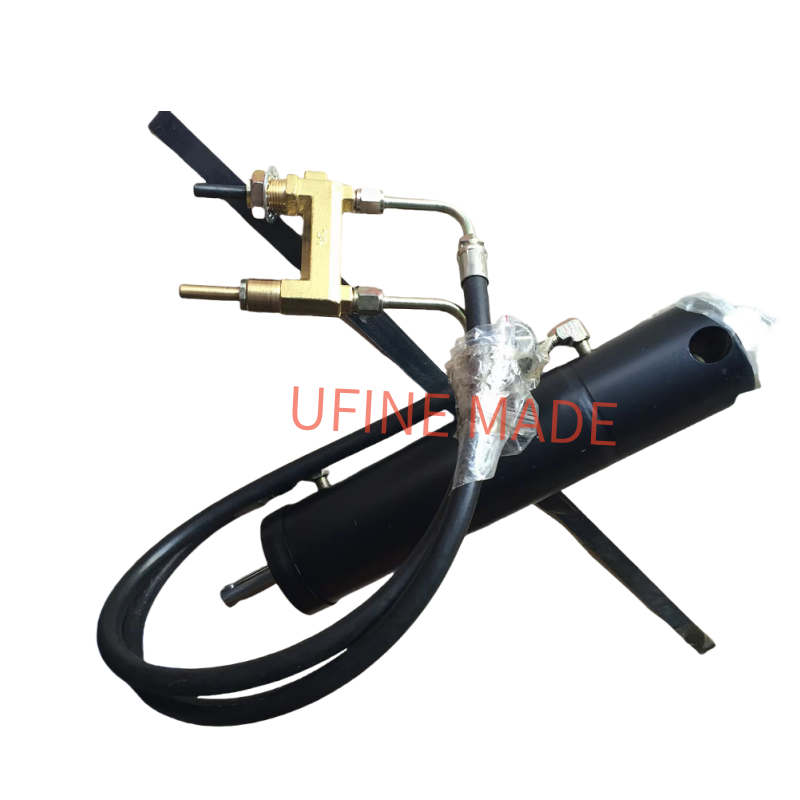

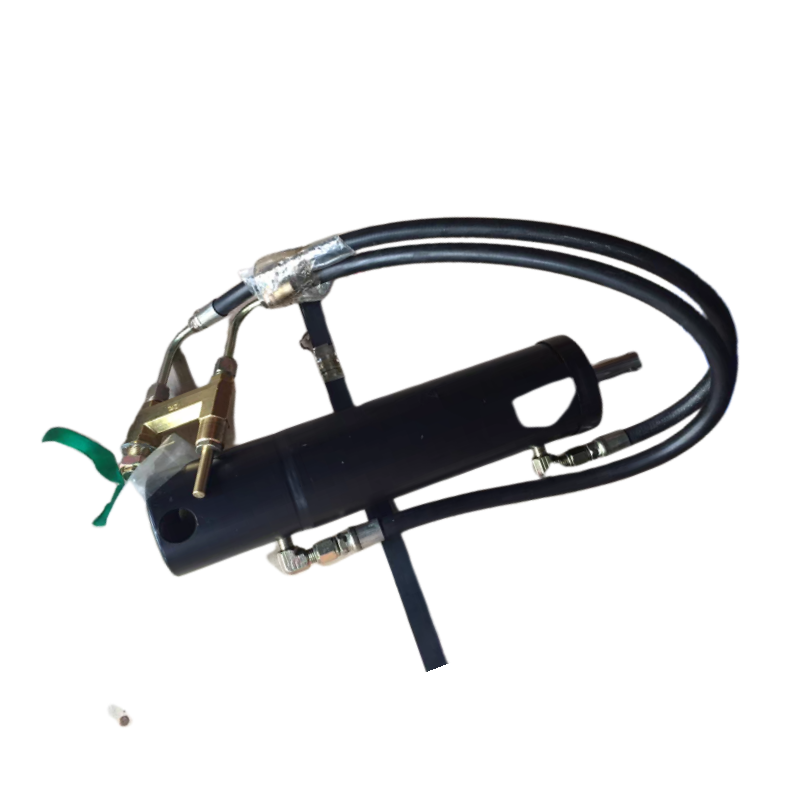

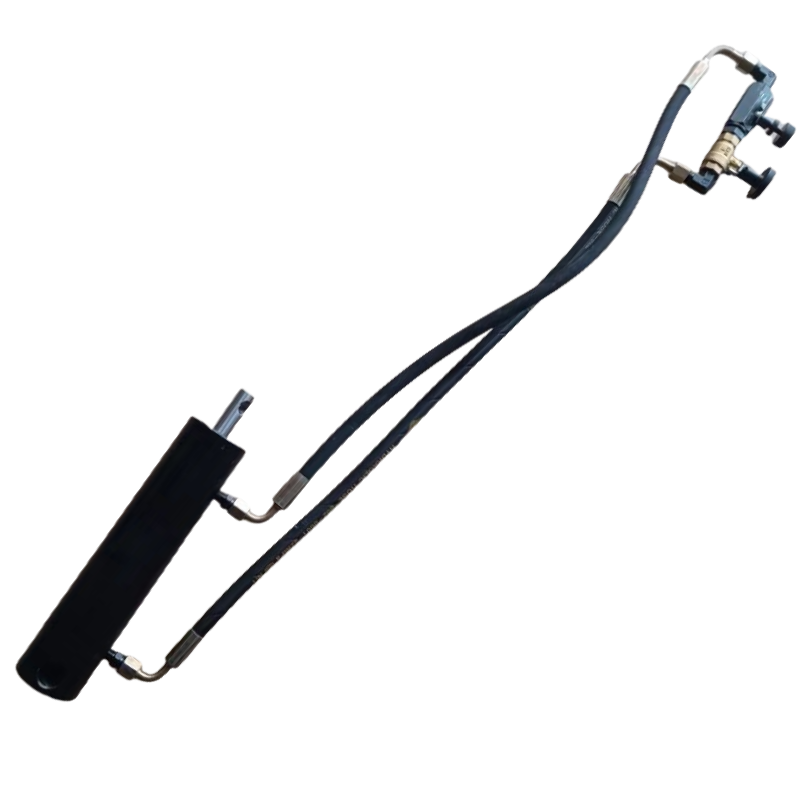

BS-2114T Industrial Metal Cutting Band Saw Hydraulic Cylinder
| Brand | UFINE |
| Blade Material | High Carbon Steel |
| Surface Recommendation | Metal Paint |
| Power Source | Hydraulic Power |
| Special Feature | Controls the drop speed of the blade |
Specifications
| SKU | 188061-167 |
| Model | Hydraulic cylinder for BS-2114T |
| Hydraulic cylinder diameter | 1.77“/45mm |
| Total length of cylinder | in retracted state: 18.3"/465mm |
| Total length of cylinder | in extended state: 25.6"650mm |
| Hydraulic rod length | after extension: 10.4"/265mm |
| Piston rod diameter | 0.78"/φ20m |
| Mounting hole diameter | M16 thread at the piston shaft end |
| Stroke | 7.2"/185mm |
